Rigid thermal insulation

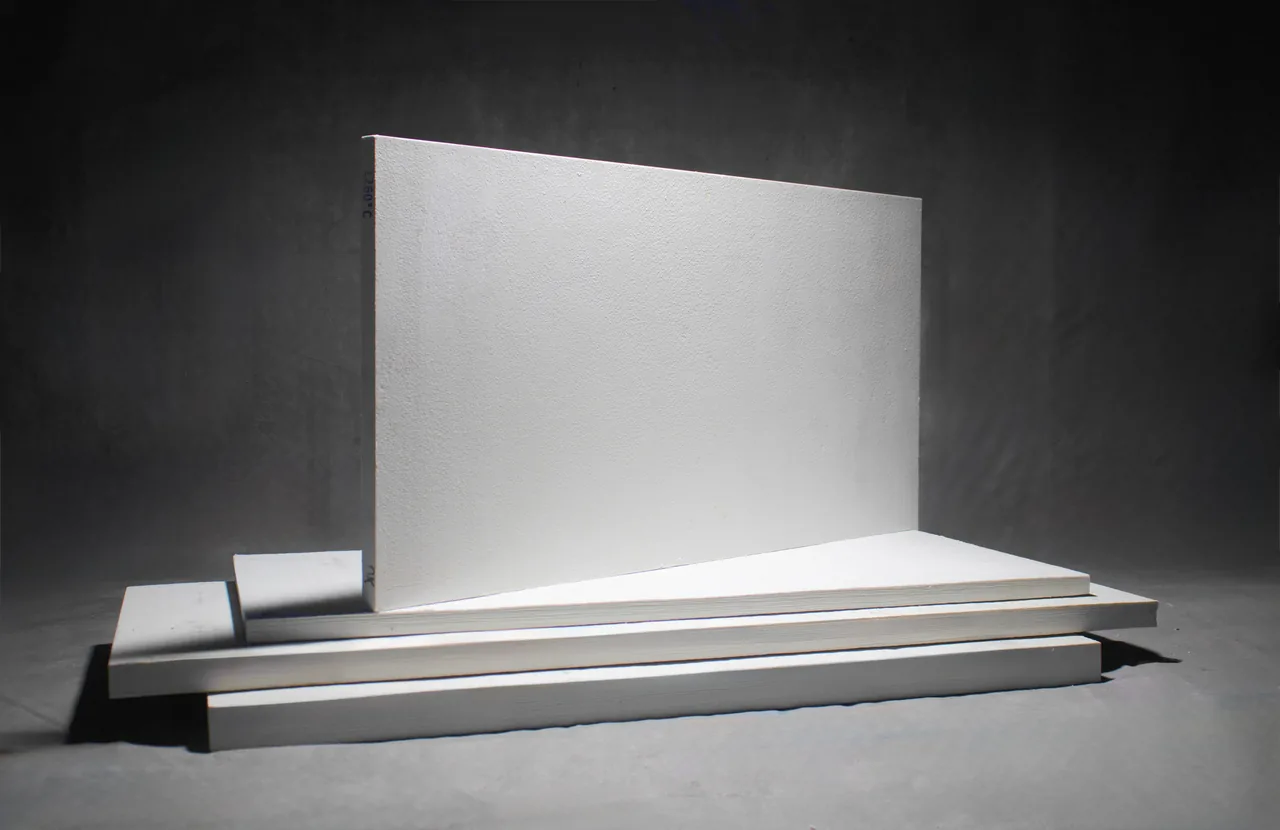

Ceramic Fiber Board
High-density ceramic fiber board engineered for dimensional stability and mechanical strength.
Product overview
Engineered for demanding thermal environments.
Ceramic fiber board is a rigid insulation product formed from high-purity alumina-silicate fibers with inorganic and organic binders selected for the required grade. Its low thermal conductivity and machinability make it suitable for linings, backup insulation and fabricated high-temperature components.
Available specifications are confirmed for each enquiry according to application, quantity and required delivery schedule.
Request a quotationCharacteristics
Product features
- Rigid and self-supporting
- Low thermal conductivity
- Good dimensional stability
- Resistance to thermal shock
- Can be cut and machined
- Multiple density and hardness options
Industry use
Typical applications
- Furnace and kiln hot-face or backup linings
- Combustion chambers and boiler insulation
- High-temperature baffles and heat shields
- Gaskets and fabricated components
- Non-ferrous metal and heat-treatment equipment
- Industrial appliance and process insulation
Technical information
Available specifications
Values shown are an overview of the currently available range. Final specification and tolerances are confirmed in the commercial documentation.
| Classification temperatures | 1100°C, 1260°C and 1425°C |
|---|---|
| Standard density range | 280–480 kg/m³ depending on grade |
| High-strength grades | Above 720 kg/m³ and above 800 kg/m³ |
| Standard thicknesses | 10, 12, 20, 25, 35, 50, 75 and 100 mm |
| Standard lengths | 900, 1000 and 1200 mm |
| Standard widths | 500 and 600 mm |
| Colour | White or off-white depending on grade |
| Thermal-conductivity test method | ASTM C177 |
Selection note: Physical properties and strength vary by formulation, density, thickness and firing conditions. Final selection should be confirmed against the required service environment.
Product enquiry
Discuss your ceramic fiber board requirement.
Include the grade, density, thickness or dimensions, quantity, application and destination port for a more precise response.
